Messung Systems P Ltd have released a new Programmable Logic Controller (PLC) called the XMPro-10. This series of PLC’s comes in 2 basic options – the 8 Digital Input(DI) 6 Digital Output (DO) XM14-DT and the 8 DI + 6 DO + 2 Analog Inputs (AI’s) and 1 Analog Output (AO) option the XM17-ADT. The basic controller also comes with RS-485 terminals and an Ethernet port. I/O expansion points should be less than 66 for XM14-DT and 63 for XM17-ADT. Remote I/O can increase the I/O count to a total of 80. The programming software is called XMPS 2000.

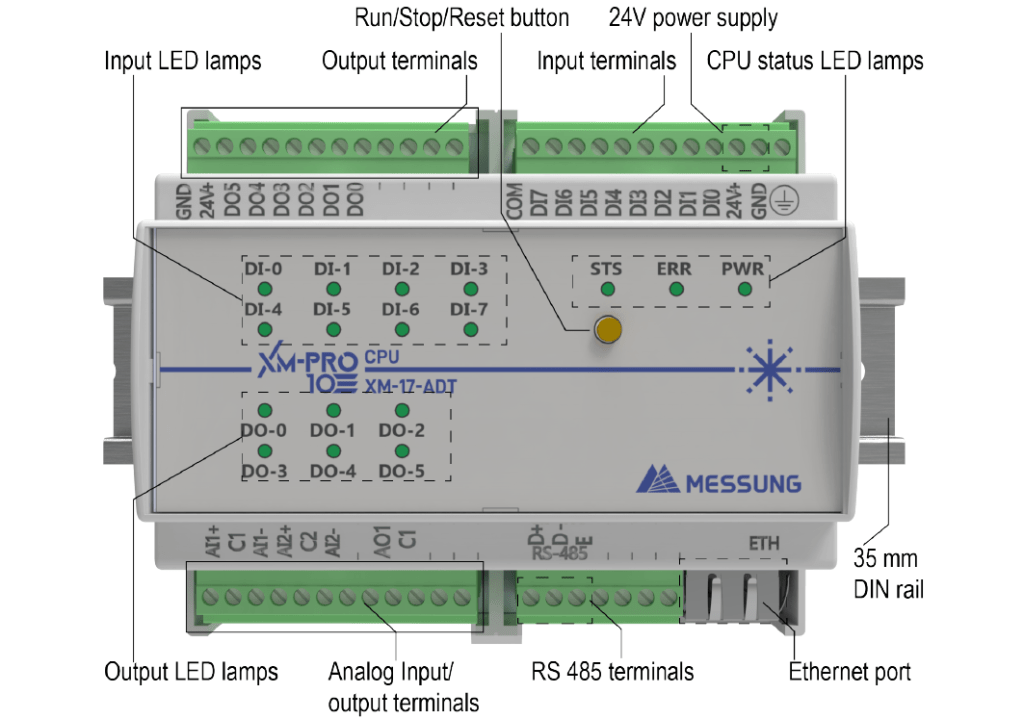

Messung Systems is one of the oldest indigenous PLC manufacturers in India. The XM17-ADT is shown in the graphic illustration, below.
